High-pressure washers

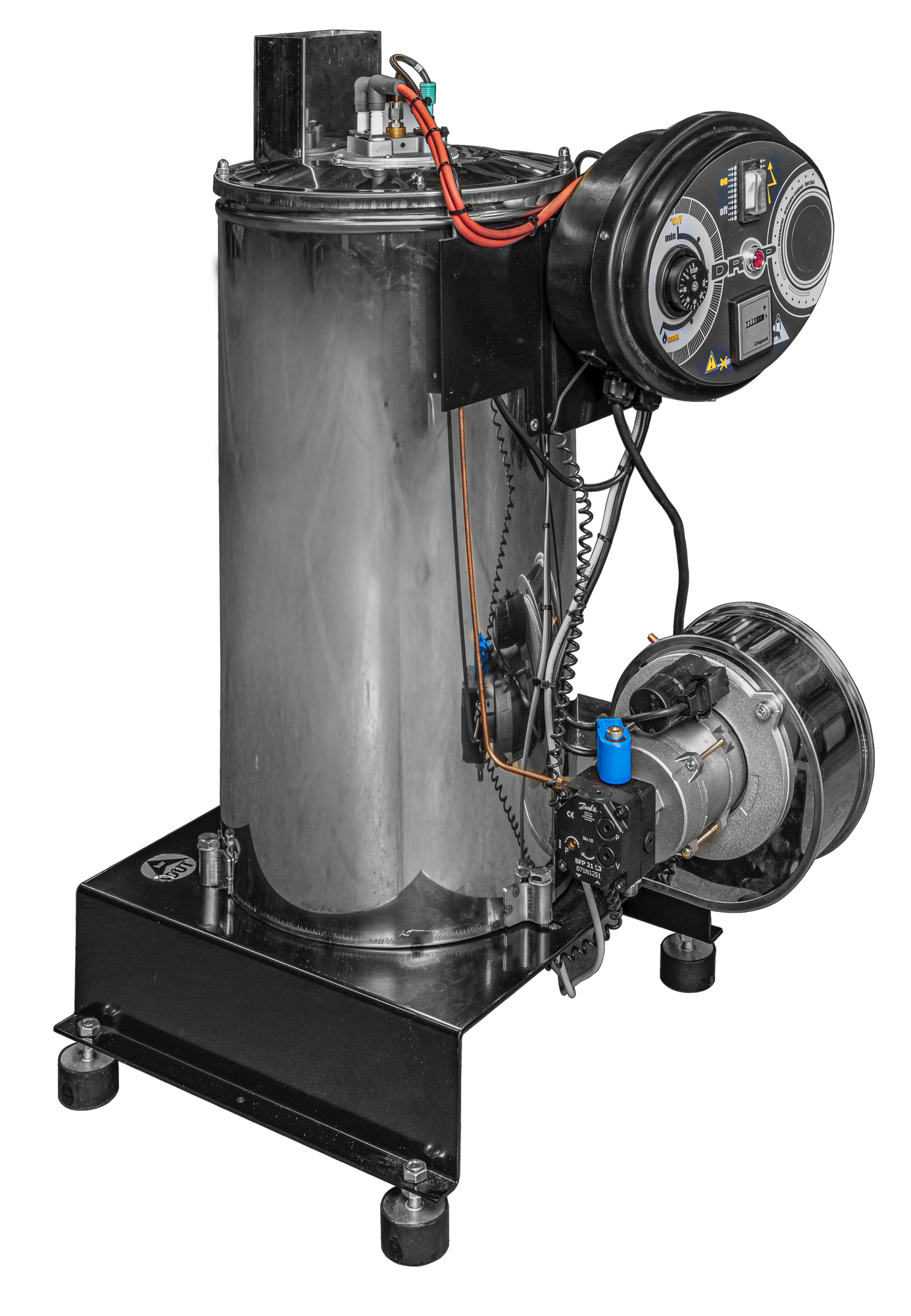

HotBox ST
A HotBox made by CLENA can complement CLENA cold water high pressure washers to a hot water appliance, without you noticing any loss of performance.
Pressure
200 bar to 500 bar
Flow rate
11-28 L/min
Heating capacity
90 kW
Model variations
| Art.No. | Pressure bar | Flow rate L/min | Power supply |
|---|---|---|---|
| 120651 HOTBOX 200 STATIONARY | 200 | 11-28 | 230 V, 1 phase |
| 120653 HOTBOX 300 STATIONARY | 300 | 11-28 | 230 V, 1 phase |
| 120654 HOTBOX 500 STATIONARY | 500 | 11-28 | 230 V, 1 phase |
| 120651/12 HOTBOX 200 STATIONARY | 200 | 11-28 | 12 V |
| 120654/12 HOTBOX 500 STATIONARY | 500 | 11-28 | 12 V |
Device features
Equipment
- Epoxy-coated steel frame with stainless steel cover
- Connection hose 1.5 m
- Heating capacity approx. 90 kW
- Flame monitoring (optical)
- Water inlet temperature up to 100 °C
- Thermal switch and flow monitoring
- Fuel tank: 20 L Diesel
- Dimensions: Length 590 mm x Width 400 mm x Height 790 mm
- Weight approx.: 72 kg
Including
Standard accessory kit SWS
- 10 m high-pressure hose DN10, kink protection on both sides
- High-pressure gun HDP350 with quick coupling and swivel joint in the inlet
- Double jet pipe made of stainless steel with high- and low- pressure nozzle
For devices up to 350 bar
Equipment options
Only in connection with unit order.Chimney transition piece CLAO0101
Rectangular 400mm
Inverter 12 V to 230 V control (CLAO0172)
Inverter 24 V to 230 V control (CLAO0173)
Oil filter attachment kit for stationary HotBox CLAO0900
