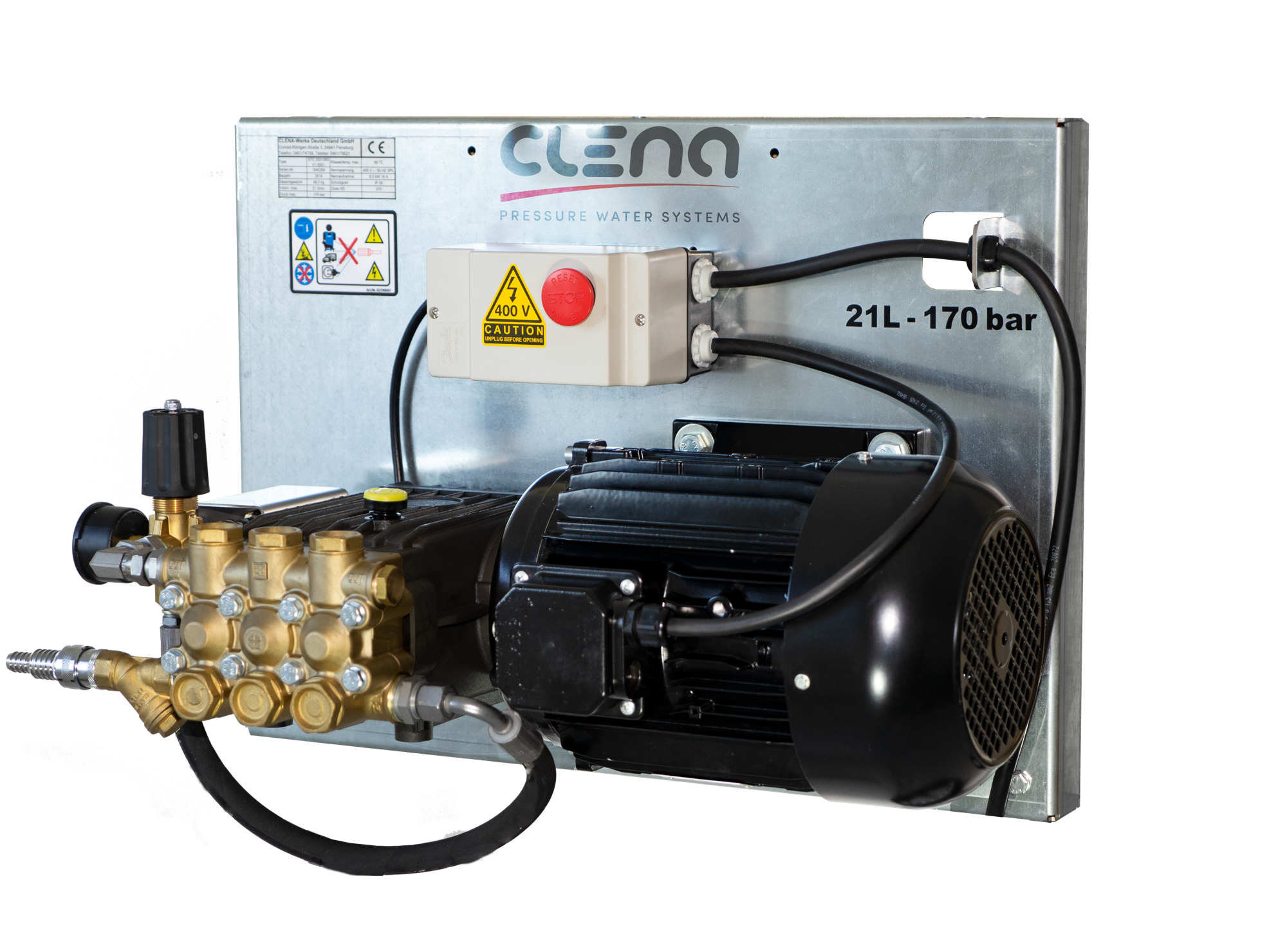

SERIES STC2500
If no change in location is planned, our stationary high pressure cleaning systems provide maximum cleaning performance in minimal space.
This cost efficient and space saving solution is ideal for applications where no cover is required, for example in stables, milking parlours or other commercial environments.
PRESSURE
150 bar to 240 bar
FLOW RATE
14 L/min to 25 L/min
POWER
4,0 kW to 6,5 kW
MODEL VARIATIONS
|
Art.No.
|
Pressure
bar
|
Flow Rate
L/min
|
Power
kW
|
Nozzle
ø
|
|---|---|---|---|---|
| STC2515055 | 200 | 15 | 5,5 | 045 |
| STC2518055 | 170 | 18 | 5,5 | 060 |
| STC2521055 | 150 | 21 | 5,5 | 075 |
| STC2515065 | 240 | 15 | 6,5 | 045 |
| STC2518065 | 200 | 18 | 6,5 | 055 |
| STC2521065 | 170 | 21 | 6,5 | 070 |
| STC2525065 | 150 | 25 | 6,5 | 090 |
DEVICE FEATURES
- Powerful motors in many performance classes with long service life due to low speed (1.450/1750 1/min)
- Triplex high-pressure pump with brass cylinder head, full ceramic pistons and stainless steel valves, oil-bath lubricated, low-noise and vibration-free
- Water inlet temperature up to 60 °C
- Direct start by contactor control with motor protection switch
- Automatic start-stop with flow switch
- Connection cable 10.0 m with 16 A plug
- Preparation for wall mounting
- Power supply: 400 V, 3 phases, 50/60 Hz
- Dimensions: Length 630 mm x Width 370 mm x Height 455 mm
EQUIPMENT
Standard accessory kit SWS
- 10 m high-pressure hose DN10, kink protection on both sides
- High-pressure gun HDP350 with quick coupling and swivel joint in the inlet
- Double jet pipe made of stainless steel with high- and low- pressure nozzle
For devices up to 350 bar
Similar Products
Series ST2500
The ideal solution for stationary high pressure cleaning systems that can be connected to hose reels or fixed pipe installations.
Available as standalone units or as part of an integrated cleaning system, they deliver maximum cleaning performance in minimal space.
PRESSURE
150 bar to 240 bar
FLOW RATE
15 L/min to 30 L/min
POWER
5,5 kW to 7,5 kW

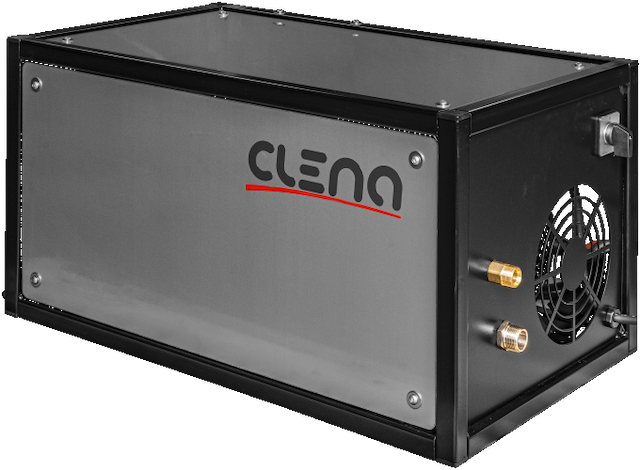

Series ST1500
If you don’t plan to move the equipment, our stationary high-pressure washers deliver maximum cleaning performance in the smallest of spaces.
The ideal solution for stationary cleaning machines that can be connected to hose reels or fixed piping systems. Whether used individually or as part of an integrated cleaning system, they deliver maximum cleaning performance in a minimal amount of space.
PRESSURE
150 bar bis 240 bar
FLOW RATE
14 L/min bis 30 L/min
POWER
5,5kW bis 7,5 kW
