High-pressure washers
Series ST2000
If no change of location is planned, our stationary high- and low-pressure systems offer you the greatest cleaning possibilities in the smallest space. Available with a variety of options such as floor stand, descaling unit, chemical injection and much more.
Pressure
150 bar bis 240 bard
Flow rate
15 L/min bis 30 L/min
Motor power
4,0 kW bis 7,5 kW
Model variations
| Art.No. | Pressure bar | Flow rate L/min | Power kW | Nozzle ø |
|---|---|---|---|---|
| ST2015040 | 150 | 15 | 4,0 | 055 |
| ST2015055 | 200 | 15 | 5,5 | 045 |
| ST2018055 | 170 | 18 | 5,5 | 060 |
| ST2021055 | 150 | 21 | 5,5 | 075 |
| ST2015065 | 240 | 15 | 6,5 | 045 |
| ST2018065 | 200 | 18 | 6,5 | 055 |
| ST2021065 | 170 | 21 | 6,5 | 070 |
| ST2025065 | 150 | 25 | 6,5 | 090 |
| ST2021075 | 200 | 21 | 7,5 | 065 |
| ST2025075 | 170 | 25 | 7,5 | 080 |
| SST203075 | 150 | 30 | 7,5 | 100 |
Device features
Equipment
- Epoxy-coated steel frame with stainless steel cover
- Powerful motors in many performance classes with long service life due to low speed (1.450/1750 1/min)
- Triplex high-pressure pump with brass cylinder head, full ceramic pistons and stainless steel valves, oil-bath lubricated, low-noise and vibration-free
- Automatic pressure relief of the high-pressure hose
- With flame monitoring
- Water inlet temperature up to 60 °C
- Heating capacity 90 kW
- Water outlet temperature up to 100 °C
- Automatic start-stop (optionally pressure or flow controlled, please specify with order)
- External fuel oil suction (no fuel oil tank)
- Power supply: 400 V, 3 phases, 50/60 Hz
- Dimensions: Length 1.280 mm x Width 580 mm x Height 750 mm
- Weight approx.: 105 kg to 190 kg, depending on equipment
Including
Equipment options
Only in connection with unit order.Chimney transition piece CLAO0101
Rectangular 400mm

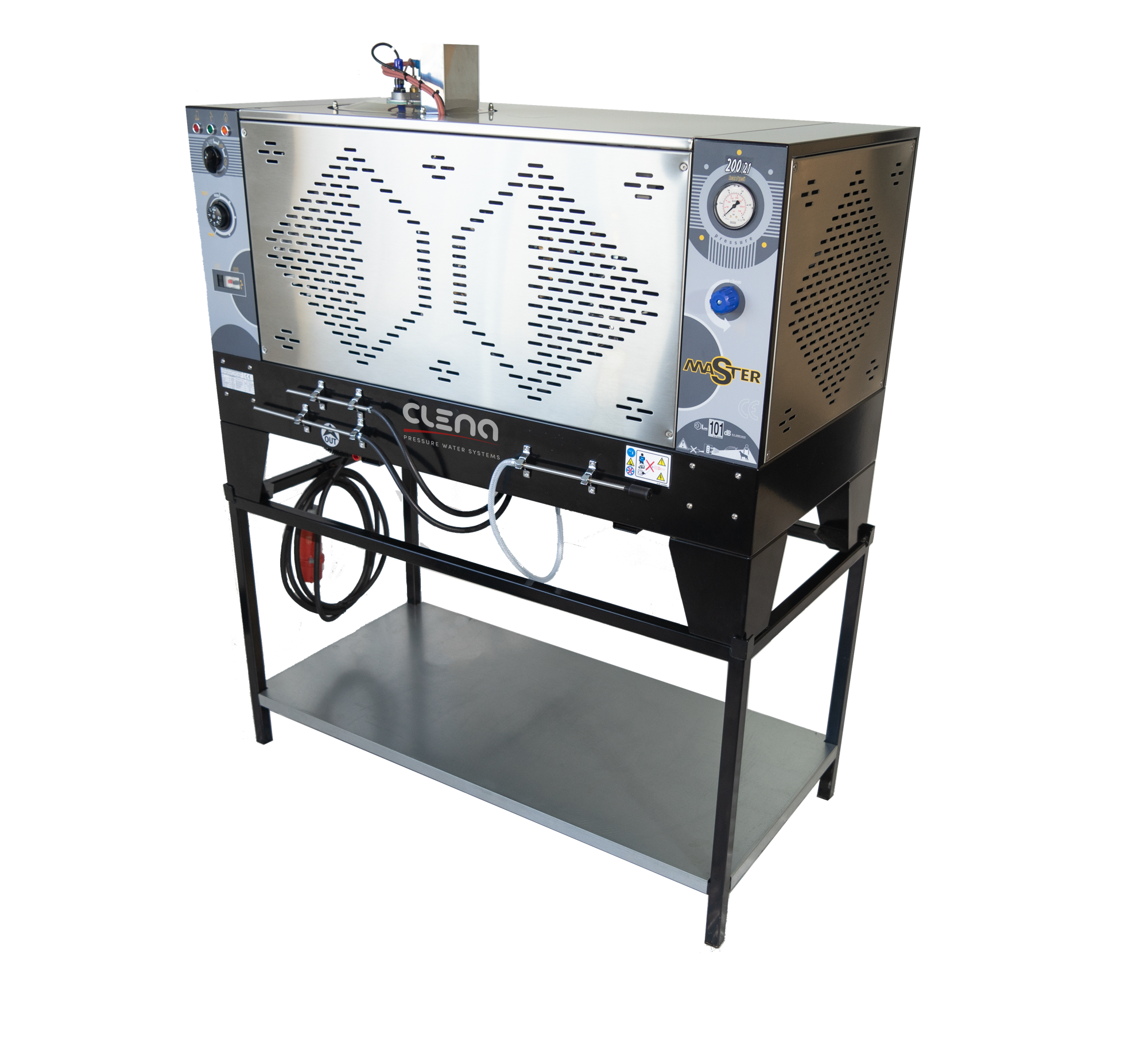

Floor rack – epoxy-coated steel CLAO0054
Steel floor rack – epoxy-coated
Floor rack – Stainless steel CLAO0055
Stainless steel floor rack
Hot water pump kit CLAO0090
For water inlet temperatures up to 80 °C
Operating hours counter 380 V CLAO0110
In separate control box IP66 with connection cable 1,0 m
Stainless steel frame ST2000
On request
Built-in descaling with tank ST2000
On request
