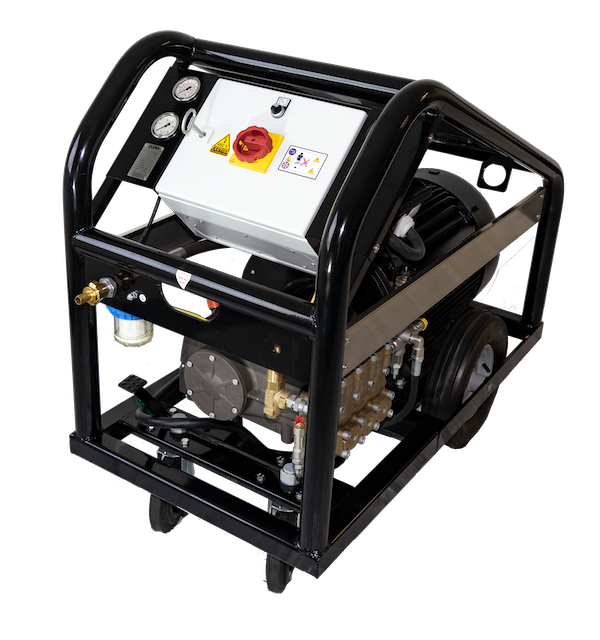

SERIES H5031
The CLENA H5000 Series offers the maximum robustness and durability and is designed for the toughest industrial environments and construction sites. With 30 L/min flushing capacity at 500 bar water pressure, the machines deliver amazing results, e.g. in concrete blasting or tank cleaning.
PRESSURE
500 bar
FLOW RATE
30 L/min
MOTOR POWER
30,0 kW
MODEL VARIATIONS
|
Art.No.
|
Pressure
bar
|
Flow rate
L/min
|
Motor power
kW
|
Nozzle
ø
|
Foam nozzle
ø
|
|---|---|---|---|---|---|
| H5030 | 500 | 30 | 30 | 055 | – |
DEVICE FEATURES
- Epoxy-coated steel frame with stainless steel cover
- Compact, ergonomic chassis with two ball-bearing wheels (fitted inside the chassis), two swivel castors with total stop function (wheels and steering braked)
- Crane lifting points on the unit for safe lifting during transport
- Powerful motor with long service life due to low speed (1.000/1.200 1/min)
- Triplex high-pressure pump with brass cylinder head, full ceramic pistons and stainless steel valves, oil-bath lubricated, low-noise and vibration-free
- Water inlet temperature 60 °C, thermal valve
- Main switch with emergency stop function according to DIN and function switch 1-0-2
- Separate safety valve
- Restart monitoring
- Automatic soft-start function
- Connection cable 5,00 m with 63 A plug, earth terminal
- 5“ water inlet filter
- Operating and control elements at viewing height
- Power supply: 400 V, 3 phases, 50 Hz / 460 V, 3 phases, 60 Hz
connection cable: 5,0 m with 32 A plug (50/60 Hz), earth terminal - Dimensions: Length 1200 mm x Width 700 mm x Height 1100 mm
- Weight approx: 450 kg
EQUIPMENT
Standard accessory kit H5000
- 30 m high-pressure hose DN10, kink protection on both sides
- High-pressure gun HP600 soft CL with swivel joint in the inlet
- Jet pipe CL with nozzle guard incl. high-pressure nozzle
