Heavy Duty

Series H9000XS

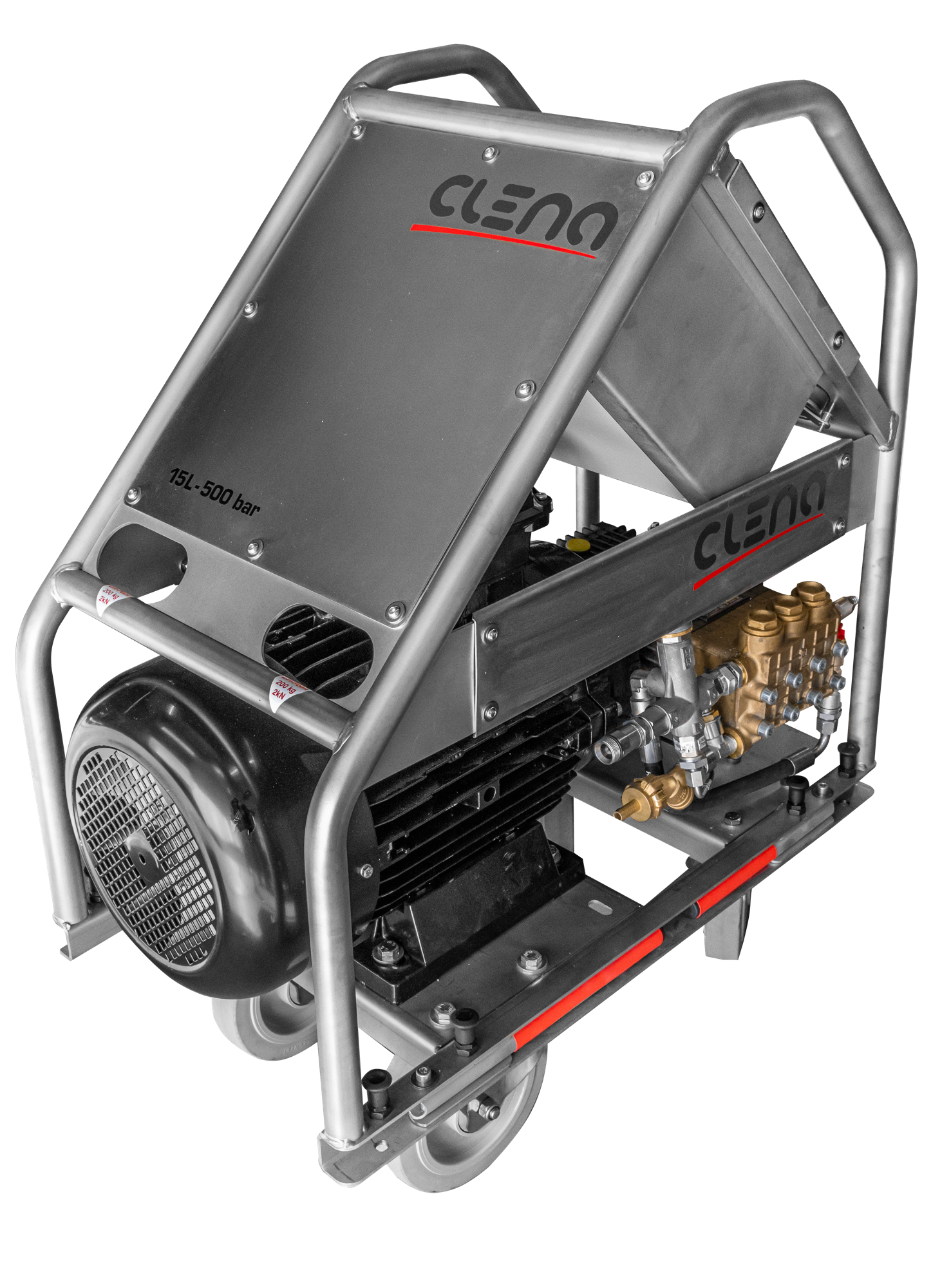

    (Abb. zeigt ggf. Sonderausstattung)

    Developed for professional use in industry, this is the most compact machine in the H series. With its extreme narrow design and the fold-out carrying handles, the machine is optimised for narrow operating aisles, such as in the maritime sector. These machines are designed for continuous use in demanding cleaning tasks, where there can be no compromises.
    Pressure
    500 bar
    Flow rate
    15 L/min
    Motor power
    15,0 kW
    Datasheets
    Request for quote

    Model variations

    Art.No.
    		Pressure
    bar    		Flow rate
    L/min    		Motor power
    kW    		Nozzle
    ø    		Foam nozzle
    ø
    H9415SX5001515,0030-

    Device features

    Equipment

    • Epoxy-coated steel frame with stainless steel cover
    • Compact, ergonomic chassis (extreme narrow design) with two fixed wheels and two swivel wheels with total stop function (wheels and steering braked)
    • Crane lifting points on the unit for safe lifting during transport
    • Foldable handles
    • Powerful motor with long service life due to low speed (1.450/1.750 1/min)
    • Triplex high pressure pump with brass cylinder head, full ceramic pistons and stainless steel valves, oil-bath lubricated, low-noise and vibration-free
    • Water inlet temperature up to 60 °C, thermal valve
    • Main switch with emergency stop function according to DIN and function switch 1-0-2
    • Restart monitoring
    • Automatic soft-start function
    • Netzüberwachung (Phasenkontrolle und Unterspannung)
    • 5“ water inlet filter
    • Operating and control elements at viewing height
    • Power supply:
      400 V, 3 phases, 50 Hz
      460 V, 3 phases, 60 Hz
      connection cable 5,0 m with 32 A plug (50/60 Hz), earth terminal
    • Dimensions: Length 800 mm x Width 450 mm x Height 1100 mm
    • Weight: approx. 180 kg

    Including

    Standard accessory kit from 400 bar
    • 10 m high-pressure hose DN10, kink protection on both sides
    • High-pressure gun HP500 soft CL with swivel joint in the inlet
    • Jet pipe CL with nozzle guard incl. high-pressure nozzle

    For devices from 400 bar

    Equipment options

    Only in connection with unit order.

    Automatic start-stop flow-controlled CLAO0014

    Flow Switch

    Frame made of stainless steel CLAO0043

    Instead of powder-coated steel

    Temperature monitoring CLAO0210

    With indicator light

    Low-water cut-out CLAO0220

    Pressure controlled with indicator light

    Operating hours counter 50Hz CLAO0230

    Operating hours counter 60Hz CLAO0231
